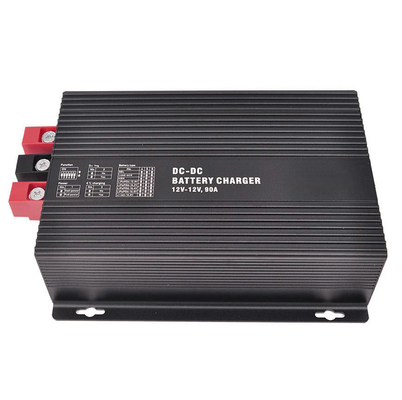

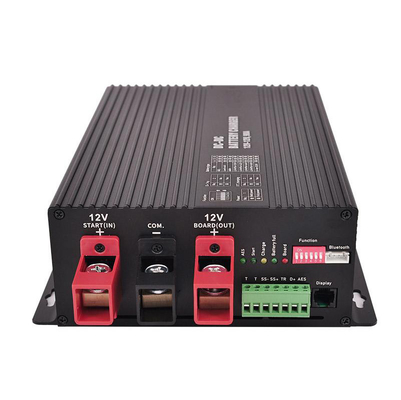

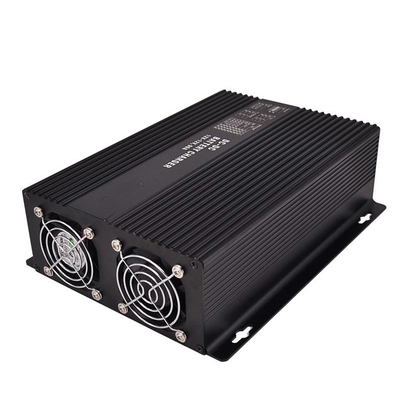

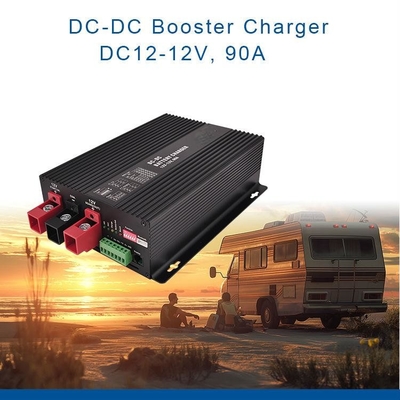

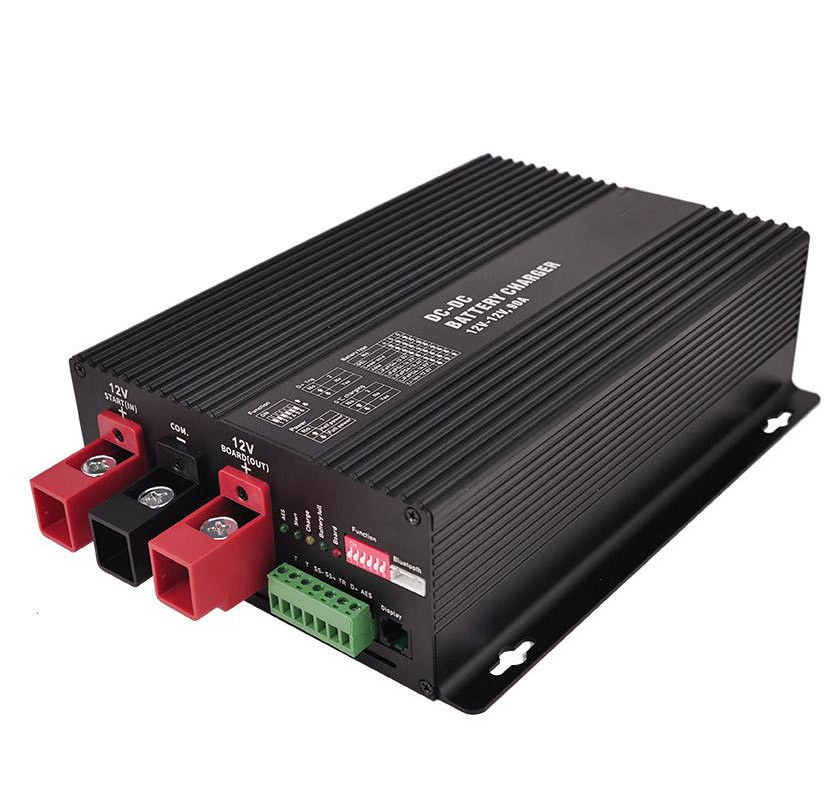

DC-DC Booster 12V 90A Two Way Battery Charger Controller For RV Vehicle Yacht
Product Details:
| Place of Origin: | china |
| Brand Name: | oxiang |
| Certification: | ce fcc |
| Model Number: | B2B1290 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | package |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Board Battery: | 12V | Start Battery: | 12V |
|---|---|---|---|
| DC Charger Current: | 30A | DC Max Power: | 390W |
| Highlight: | RV DC-DC Booster,Yacht DC-DC Booster,Two Way Battery Charger Controller |
||
Product Description
| Model | B2B1290 |
| Board Battery rate voltage | 12V |
| Start Battery rate voltage | 12V |
| DC-DC Charge Current | 30A |
| DC-DC Max Charging Power | 390W |
| MPPT solar charge current | 20A |
| Max. Input solar voltage/power | 50V/250W |
| Maximun output refrigerator current | 20A |
| Board battery charges the start battery | 0-5A |
| solar charge the start battery | 0-5A |
| Battery type | Sealed,GEL,AGM,LIFEPO4,Lithium-ion,(8 types of battery parameters) |
| Self-consumption current | 24mA |
| Monitor (MT-4) | |
| Optional accessories | Temperature Sensor (RTS) |
| Bluetooth Module (BT10),Free APP | |
| Weight Dimension | 1.5kg / 194*190*70mm |
B2B Operation :mobile operation from dynamo and starter battery (Battery to Battery):
it refers to charging the main battery through dynamo and starter battery, .If it is not used in the Vehicle , you can also use
one battery (12V) to charge another
1. .The efficient charging converter (booster) allows full charging of the board battery during
2. . It increases/reduces the voltage to the level, which is required for precise charging of the board battery with the optimum
characteristic line of
3. .The simultaneously supplied 12 V consumers are protected against overvoltage and voltage
Further Characteristics of the Unit
* Theoutput voltage is stabilized, free of peaks, smoothed and
* Galvanic isolation between input andoutput:
* Noovervoltage at the output and thus protection of the consumer if the ground line is
* Clean,undisturbed mass ratios, even with long supply
* Stableoperating voltage on site in mobile operation, g. Containers, trailers, roll containers etc.
* Filteringand suppression of disturbances on the input to the output
* Fullyautomatic continuous operation: The DC-DC converter can constantly work with the battery
* Surveillance-free operation: multiple protection against overload, overheating, overvoltage, shortcircuit, Misconduct and deep
discharge of the battery through electronic regulation to complete
