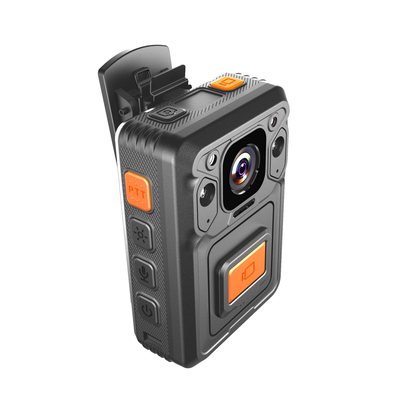

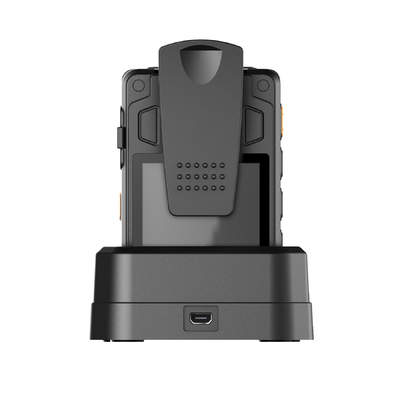

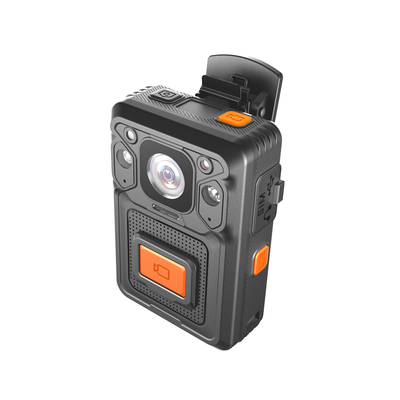

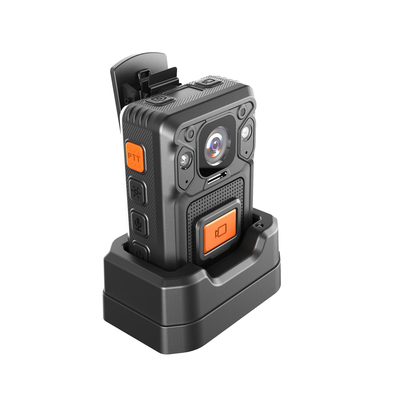

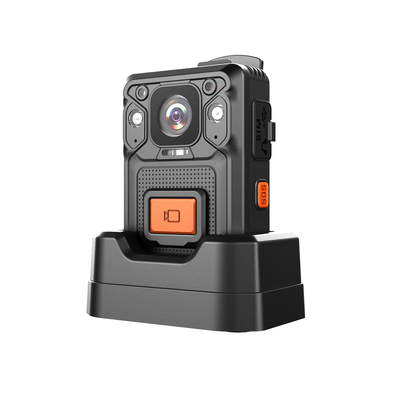

Live Video 4g Body Worn Camera Onvif Nvr Night Vision 720p
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Ouxiang |
| Certification: | CE,ROHS,FCC |
| Model Number: | OX-ZP522G |
Payment & Shipping Terms:
| Minimum Order Quantity: | could be discussed |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Neutral Packing |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C, T/T, Western Union, Money Gram,Paypal |
| Supply Ability: | 3000pcs/month |
|
Detail Information |
|||
| PTT Walkie-talkie: | Support For Many Models | Waterproof: | IP65 |
|---|---|---|---|
| Night Vision: | Up To 10 Meters With Visible Face Detection | Battery: | Built-in 2900mAH Lithium |
| Size: | 80 Mm *55 Mm *30mm | LCD Screen: | 2 Inch TFT-LCD High-Resolution Color Display |
| Highlight: | live video 4g body worn camera,night vision 4g body worn camera,720p hd wifi police body camera |
||
Product Description
Specification
| Size | 84.5 mm*56.3 mm*27.3 mm |
| Weight | 163g |
| Button | Front big Record button and top Record button easy operation |
| Yellow PTT button | |
| Yellow SOS button(Panic button) | |
| Hardware | |
| Chipsets | Ambarella H22 |
| Sensor | OS05A20 |
| Indicators | |
| 3 color LED indicator for camera status | |
| 3 color LED indicator for battery level | |
| Programmable buzzer; Vibration | |
| Light | |
| IR | IR upto to 10 meters at 0 lux with visible shape image |
| Flash Light | 90 degrees view angle light source for low light condition can enable/disable by button press |
| Laser | Optional(position the object to record,enable/disable by button) |
| Durability | |
| Shock Proof | 1.8 m (5.9ft) |
| IP Rating | IP67 |
| Video/picture/audio | |
| Coding | .H.264/H.265 |
| View Angle | FOV 140 degrees |
| Video Resolution | 2560X1440P 30FPS,1920X 1080P 30FPS (Chipsets support 4K,limit to 1080 for lower power consumption) / 1080P60 / 720P30 / 720P60 / 480P30 |
| Video Streaming Resolution | 720P30 / 480P30 / 320P30 |
| Audio Streaming | Support |
| Text Streaming | Support |
| Streaming Bitrate | 300kbs-4M kbs |
| Snap Shot | During recording |
| Video Format | MP4 |
| Picture format | JPEG |
| Audio Format | AAC |
| EIS | 6 axis image stabilizer(Optional) |
| SOS | Audio alarm activates in all cameras at same group and audio |
| alarm in command certer | |
| External Camera | |
| External Camera | Support |
| Night Vision | Ultral low light performance & IR LED |
| Storage | Optional 32 GB,64 GB,128 GB,256 GB |
| Hardware Interface | |
| USB Port | Support external camera connection |
| Pogo Pin connection | Support dock & go operation |
| Wireless Connections | |
| Wi-Fi | 2.4G&5G, AP/STA/P2P,Wi-Fi channel can be set by cam manager |
| Bluetooth | Support Heartbeat Rate activate recording, Remote controller, support re-development |
| ONVIF | Support ONVIF streaming & recording Support NVR brand such as Hikvision, Dahua, Uniview and so on |
| IR | 10 meters (2 IR LED) |
| GPS | Support |
| 3G/4G | Built in 3G/4G module(FDD-LTE/WCDMA/GPRS) |
| Clustered Talkback(PTT) | Optional (camera talk to camera, camera talk to command center, command talk to cameras);can set cameras to groups from camera GUI or from command center software |
| Alarm | SOS button to activate warning signal in camera and in command center and advise command center the position of camera |
| Text message | Camera can send text message to camera or command center |
| Protocol | |
| TCP/IP, RTSP, RTMP, GB/28181/JSON | |
| Battery | |
| Recording Time | 1080P Up to 14 Hours;480P Up to 16 Hours |
| GPS and Wi-Fi on at 480P30 12 hours and 30 minutes | |
| Standby Time | 100+ hours |
| Charging Time | 4 hours |
| Streaming&Recording time | 7.5 hours(3G/4G version) |
| Pre&post recording | |
| Pre-recording | 30 seconds to 60 seconds varies from resolution settings |
| Post-recording | 30 seconds to 60 seconds from resolution settings |
| Motion Detect | Support |
| Security Features(Optional) | |
| File Encryption | AES256 encryption during writing files to memory card |
| AES256 encryption RTSP Video/audio/Text streaming data | |
| Network Security | Https&Http Server |
| Wi-Fi Security | Dynamic Pin Code authentication |
| USB Command&JSON command | |
| all camera settings available under mass storage mode | |
| all camera settings available under USB simple mode | |
| USB heart beat available | |
| Control over LED/buzzer available under mass storage mode | |
| Ambarella driver free even while USB encryption activated | |
| Support driver free connection to computer | |
| Mount solution | |
| Standard mount | 360 degrees rotatable crocodile mount |
| Optional mount | MOLLE compatible mount |
| Optional accessoires | CLICKFAST Stud |
| Video Stamp | |
| Content supported | User ID/Device ID/Date/Time/Geo-tags/Logo |
| Others | |
| Working Temperature | -30 -65 degrees celsus |
| Operating Humidity | 95% |
Feature
Support English, Chinese, traditional Chinese, Japanese, Portuguese, Russian, polish, French, Spanish
1. Ambarella A7LA50 Chipset
2. 2 inch LCD Display
3.Built-in GPS
4. Built-in 3200mAh battery, 12 hours video recording(1920*1080 30P)
5. Video Resolution: 2304*1296/1920*1080/1280&720/848*480
6. 5.0 MP CMOS Sensor
7. 140° field of view
8. Storage Capacity:Support 16G/32G/64G/128(With Standard 32GB)
9. Water Mark :User ID, Time and date Stamp,GPS coordinates Imbedded into Video.
10.IP68 waterproof & 2 meters shock-proof
11.No audio and photo keys,Only Video
1. Ambarella A7LA50 Chipset
2. 2 inch LCD Display
3.Built-in GPS
4. Built-in 3200mAh battery, 12 hours video recording(1920*1080 30P)
5. Video Resolution: 2304*1296/1920*1080/1280&720/848*480
6. 5.0 MP CMOS Sensor
7. 140° field of view
8. Storage Capacity:Support 16G/32G/64G/128(With Standard 32GB)
9. Water Mark :User ID, Time and date Stamp,GPS coordinates Imbedded into Video.
10.IP68 waterproof & 2 meters shock-proof
11.No audio and photo keys,Only Video
