430W MPPT Solar Charge Controller DC Battery Charger Max Solar Panel 50V
Product Details:
| Place of Origin: | Shenzhen |
| Brand Name: | Oxiang /OEM |
| Certification: | CE.RoHS,FCC |
| Model Number: | MPPT5010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box Size：28*24.5*10.5cm |
| Delivery Time: | Sample: Around 3 working days after payment |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal, Credit Card |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Lead-Acid, Gel, AGM Batteries Nominal Voltage: | 12V | Capacity (Battery Size), Recommended: | 90-560 AH |
|---|---|---|---|
| Input Voltage Range %22Start II%22 ,“D+” Controlled: | 10.5-16V | Activation Control Input %22D+%22: | 8-16V |
| Max.PV Power(Pmax.): | 430W | Max.PV Current: | 26A |
| Highlight: | OEM DC Battery Charger,Max 50V DC Battery Charger,430W MPPT Solar Charge Controller |
||
Product Description
MPPT Solar Charge Controller DC Battery Charger Max Solar Panel 50V
|
item
|
value
|
|
Place of Origin
|
shenzhen
|
|
Brand Name
|
Neutral
|
|
Model Number
|
MPPT5010
|
|
Type
|
DC/DC Converters
|
|
Output Type
|
Multiple
|
|
Output Current
|
10A
|
|
Output Frequency
|
50Hz/60Hz
|
|
Size
|
14.7*12.6*4cm
|
|
Weight
|
0.55KG/Box
|
|
Certificate
|
CE, ROHS, FCC
|
|
Color
|
black
|
|
Bluetooth
|
support
|
|
Monitor
|
support
|
|
Temperature sensor
|
support
|
|
MPPT charge controller
|
12V/24V automatic identification
|
|
Maximum solar panel voltage
|
50v
|
|
Maximum input and output current
|
10A
|
|
MPPT tracking efficiency
|
99.8%
|
|
DC load output function
|
Support
|
|
Charge Battery type
|
GEL,Sealed,Flooded,LiFePO4,Lithium-ion
|
12V/24V, 10A MPPT solar controller, with load output function
1. MPPT charge controller, 12V/24V automatic identification
2. Maximum solar panel voltage 50V
3. Maximum input and output current 10A
4.MPPT tracking efficiency 99.8%
5.Support with DC load output function
6.Charge Battery type:Lead-acid,GEL,Sealed,Flooded,LiFePO4,Lithium-ion

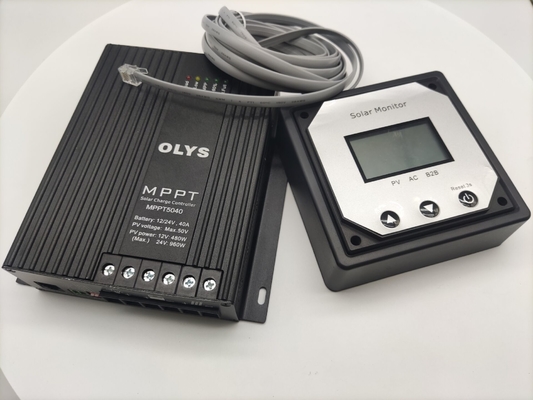

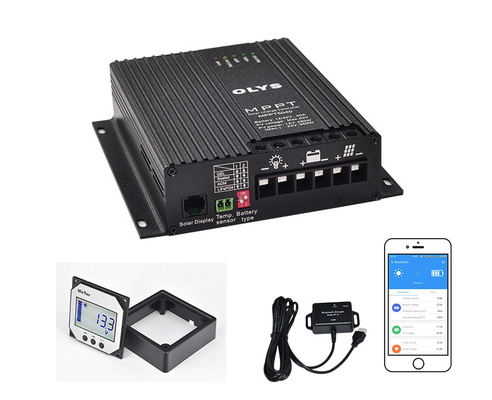

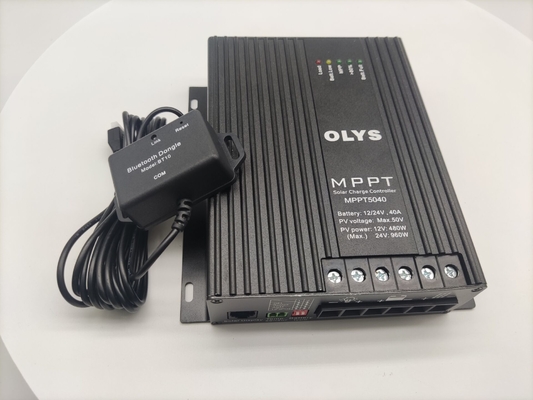

Choose Accessories: Monitor(MT-4); Bluetooth Dongle(BT10); Temperature Sensor(TRS)
Large capacity battery banks may require a few cycles to fully charge.
DC to DC battery chargers
Compact in size, easy to install and fully sealed - water, dust and vibration are no match for our vehicle battery chargers. Suitable for 12 or 24 volt vehicle systems, Oxiang's dual battery chargers work with either standard, voltage alternators or smart alternators.
> Oxiang is located in Shenzhen, China, a new type of city in rapid development. We focus on CCTV Camera researching and manufacturing from 2006;
> Sales person provide Pre-sales and after-sales service; Professional engineers are always standby and assist offer solutions;
> Cooperate with multiple departments to complete raw material procurement, production, inspection, delivery and other steps;
> The product comes with a one-year warranty.
