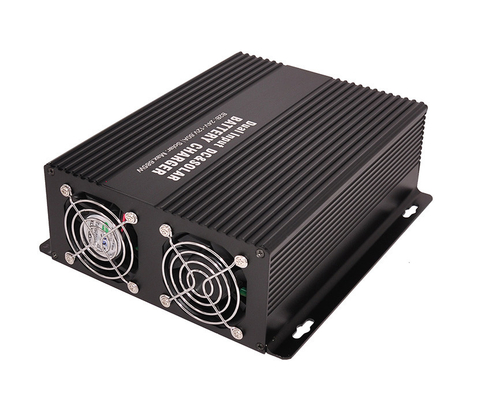

Fully Sealed DC DC Battery Charger 780w B2B Battery To Battery Charger For Vehicle Systems
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Oxiang/ OEM/ ODM |
| Certification: | CE, RoHS, FCC |
| Model Number: | B2B241260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box Size：28*22*10cm |
| Delivery Time: | Sample: Around 3 working days after payment |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal, Credit Card |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Input Voltage: | 24V(21-32V) | Output Voltage: | 12V(10.5-16.0V) |
|---|---|---|---|
| B2B Charging Current: | 12V, 60A | Max.charging Power: | 780w |
| Charge Battery Type: | Lead-acid，GEL,Sealed,Flooded, LiFePO4, Lithium-ion | Product Size: | 19*21.5*7 Cm |
| Highlight: | B2B DC DC Battery Charger,780w DC DC Battery Charger,Fully Sealed battery to battery charger |
||
Product Description

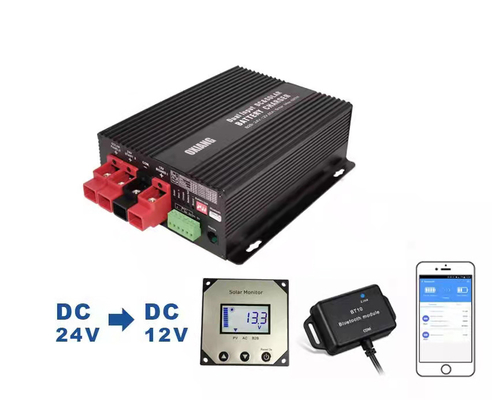

DC-DC Battery Charger Automatic Smart B2B Charger Battery To Battery
| Main battery " Bord " | |
| Lead-Acid, Gel, AGM Batteries Nominal Voltage | 12V |
| LiFePO4 Nominal Voltage | 12.8V |
| lithium- ion( NCM) Nominal Voltage | 11.1V |
| Capacity (Battery Size), recommended: | 90-560AH |
| Vehicle Starter Battery "Start II": | |
| Vehicle Starter Battery Nominal Voltage: | 12V |
| Min. Battery Capacity (Size), recommended: | 100AH |
| 12 V / 12 V B2B Charging operation | |
| Input Voltage Range "Start II" ,"D+" controlled: | 10.5-16V |
| Maximum charging power: | 780W |
| " Bord " Max. charge current | 60A |
| Activation Control Input "D+" | 8-16V |
| Signal Output "OK/TR", Switch Position "TR", | 12V/1A |
| Cutoff Relay Bypass/max | |
| Signal Output "OK/TR", Switch Position "OK" | 12V/1A |
| Input "T T" for Battery Temperature Sensor "Board I": | YES |
| " Ss-" "Ss+" Inputs Sensor Cables "-" and "+" for Battery "Board I": | YES |
| stand-by current | 24mA |
| Main battery overvoltage protection | 15.5V |
| weight | 1.6kg |
| demension | 190×215×70mm |
| Operating temperature | -20-50ºC |
Getting a dead battery when you’re off on a 4WD or caravan adventure is the worst. However, with some of the most powerful and compact DC DC battery chargers has to offer. No matter what kind of battery charging system you're after,Oxiang has the solution. Our wide selection of DC to DC battery chargers are designed to keep your battery charged whilst driving and will fully charge auxiliary batteries to a proven 100%.*
*large capacity battery banks may require a few cycles to fully charge.
DC to DC battery chargers
Compact in size, easy to install and fully sealed - water, dust and vibration are no match for our vehicle battery chargers. Suitable for 12 or 24 volt vehicle systems, Oxiang's dual battery chargers work with either standard, voltage alternators or smart alternators.
> Oxiang is located in Shenzhen, China, a new type of city in rapid development. We focus on CCTV Camera researching and manufacturing from 2006;
> Sales person provide Pre-sales and after-sales service; Professional engineers are always standby and assist offer solutions;
> Cooperate with multiple departments to complete raw material procurement, production, inspection, delivery and other steps;
> The product comes with a one-year warranty.
