HD Night Vision Digital Video Monitor Remote Swivel 5 Inch Wireless Baby Monitor
Product Details:
| Place of Origin: | Shenzhen |
| Brand Name: | Oxiang /OEM |
| Certification: | CE.RoHS,FCC |
| Model Number: | BM850 |
|
Detail Information |
|||
| Weight: | 0.8 Kg | Gift Box Size: | 19x14.5x9.5 Cm |
|---|---|---|---|
| Containing IR Night Vision Function: | Achieve 24-hours Monitoring | Camera With PTZ Function: | Support |
| Voice Control: | Auto, With Alarm Function | Secure Transmission: | Code Needed |
| Highlight: | 25FPS Digital Video Monitor,5Inch Digital Video Monitor,Remote Swivel 5 Inch Wireless Baby Monitor |
||
Product Description

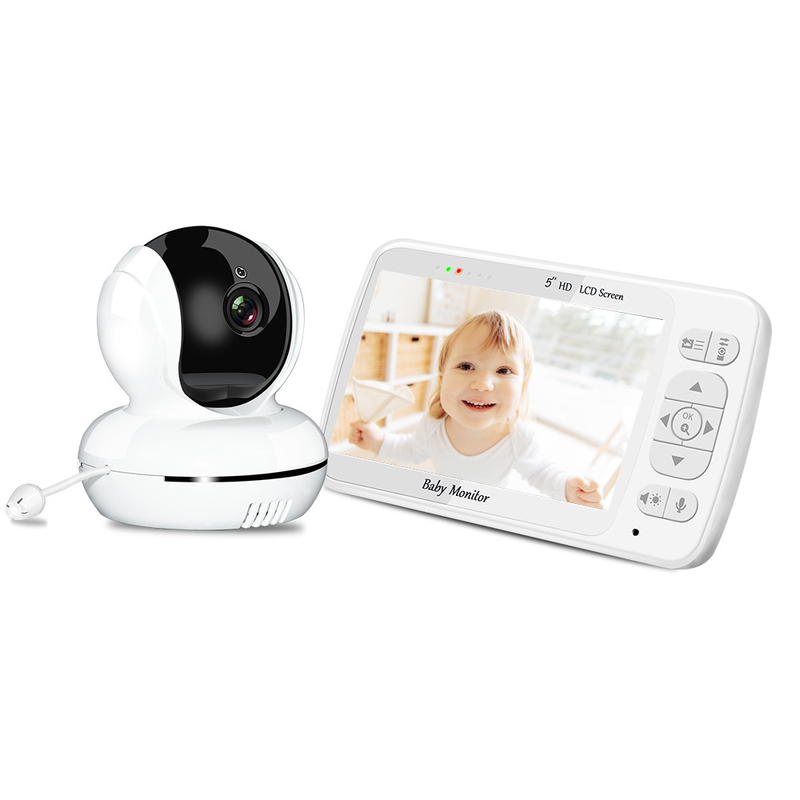

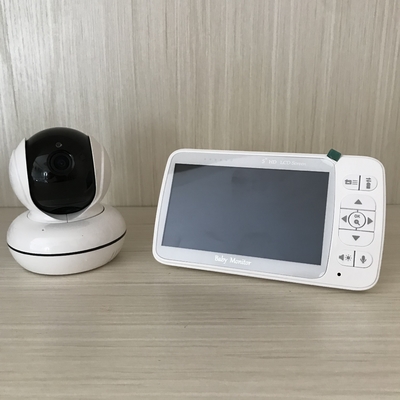

5 Inch Remote Swivel Wireless Baby Monitor High Definition Baby Care
Parameters
| Reception sensitivity | -89dBm(Typ.)@4MHz BER<1E-3 |
| Night vision distance | 3—5 meter (6 LED Lights) |
| Humidity | 20--80% RH |
| Temperature | 0℃--45℃ |
| One receiver multiple emitters | One receiver with four emitters,switch display and loop display support |
| Screen size and resolution | 5-inch, 720*1280 RGB, color LCD |
| Secure transmission | Code needed |
| Working Time | 5 hours of continuous discharge, 8 hours of sleep mode |
| FPS | 15-25 FPS |
| Signal intensity | 5 level |
| Volume Control | 10 level |
| intercom | Two-way communication |
| Voice control | Auto, with alarm function |
| Working Electric current | TX:500mA MAX,RX:500mA MAX , stand-by 340MA (without charging Electric current) |
| Charging Electric current | 300-400MA |
| Camera resolution | 720P |
| Image resolution | 720P |
| Video frame rate | 15-25FPS |
Total Harmonic distortion |
<5.0% |
Signal to Noise Ratio |
46dB |
| LCD receive voltage | DC:5V/1000MA |
| Battery | Built-in 3.7V/2020MAH Li-battery |
| Transmission Frequency | 2.4GHz ISM Band |
| Wireless working method | FHSS |
Transmission power |
17+-1dBm |
| Transmission speed | 4MHz BER<1E-3 |
| Transmission distance | 150-200 meters in open area |
Troubles and Solutions
1. The monitor is too loud.
The camera uses a high sensitivity MIC phone to pick up tiny sound from the baby, when the sound is too loud, you can turn down the volume by pressing button and adjust it.
2. The monitor won’t power on.
Please check the battery first and use the included adapter to charge the monitor.
3. A howling from the monitor when the camera is nearby.
It is caused by the acoustic feedback, since the audio signal received by MIC with the voice around camera mixed and emitted, the receiver will make greater invoice. Again and again, howling formed.
Please lower the monitor’s volume and put it away from the camera.
4. The image and voice transmission is not smooth, the video or audio jams.
The wireless transmission can be affected by obstructions like walls/ doors/ glasses/ trees and other high power devices like microwave oven or wireless router have certain influence on the transmission.
5. There is no video signal.
- Please check whether the monitor pairs a wrong channel, press the button to switch channels.
- Please check the power supply of the camera.
- Please make sure the camera and the monitor is in range, the transmission range is up to 200 meters in an empty area. However when used indoor, the range will be affected by the wireless interference and obstructions like walls/ doors/ glasses/ trees.
6. Can I connect multiple cameras with one monitor?
Yes, 1 single monitor can be connected up to 4 cameras, you can follow the instructions to connect them.
