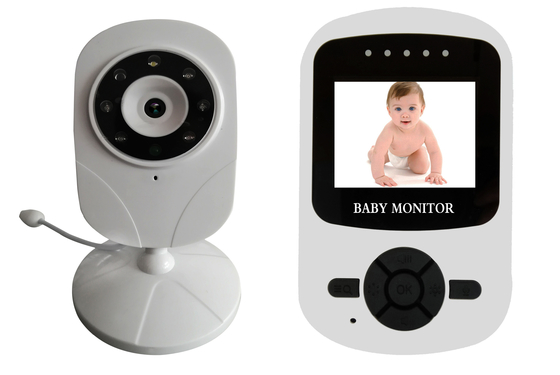

Wireless 2.4 Inch LCD Baby Monitor Camera Baby Monitor Night Vision Camera
Product Details:
| Place of Origin: | Shenzhen |
| Brand Name: | Oxiang /OEM |
| Certification: | CE.RoHS,FCC |
| Model Number: | BM824 |
|
Detail Information |
|||
| Night Vision Distance: | 2—3 Meter | Transmission Distance: | 200-300 Meters In Open Area |
|---|---|---|---|
| Transmission Frequency: | 2.4GHz ISM Band | TV Display: | Support |
| Gift Box Size: | 16*15*7.5cm | Net Weight: | 0.38kg |
| Highlight: | Wireless 2.4 Inch LCD Baby Monitor,FCC 2.4 Inch LCD Baby Monitor,450m Wireless Baby Monitor Display |
||
Product Description
2.4G 2.4 TFT LCD Baby Monitor 450m Long-Distance Transmission
Parameter
Total Harmonic distortion |
<5.0% |
Signal to Noise Ratio |
46dB |
| Reception sensitivity | -96dBm@BER=1e-3 |
| Night vision distance | 2—3 meter |
| Humidity | 20--80% RH |
| Temperature | 0℃--45℃ |
| LCD receive voltage | DC:5V/1000MA；Battery:Built-in 3.6V/700MAH Li-battery |
| Transmission Frequency | 2.4GHz ISM Band |
| Wireless working method | FHSS |
Transmission power |
19dBm@CW mode |
| Transmission speed | 3Mbps |
| Transmission distance | 200-300 meters in open area |
| Functions | Description |
| FPS | 15-25 FPS |
| Signal intensity | 4 level |
| Volume Control | 5 level |
| intercom | Two-way communication |
| Voice control | Auto |
| One receiver multiple emitters | One receiver with four emitters,switchable display |
| LCD size | 2.4-inch 960*240 RGB LCD |
| Secure transmission | Code needed |
| Working Electric current | TX:400mA MAX,RX:400mA MAX , stand-by 160MA (without charging Electric current) |
| Charging Electric current | 120-200MA |
| Audio collect speed | 16K |
| Audio Frequency Response range | 120Hz~3KHz |
| MIC Input | 35--50dB@ |
| Camera resolution | 0.3 mega pixels |
| Image resolution | 320*240QVGA |
| Video FPS | 15-25FPS |
Feature
1.Howling when camera nearby receiver.
It’s caused by Acoustic feedback, since the audio signal received by MIC with the voice around camera mixed and emitted, the receiver will make greater invoice. Again and again, Howling formed. You can lower the loudspeaker volume or put receiver away from camera.
2. Not working.
Please check the battery, does it can turn on when plug in the power supply, if no, check charging LED light.
3. Received music too loud
Turn down LCD volume or turn off LCD volume

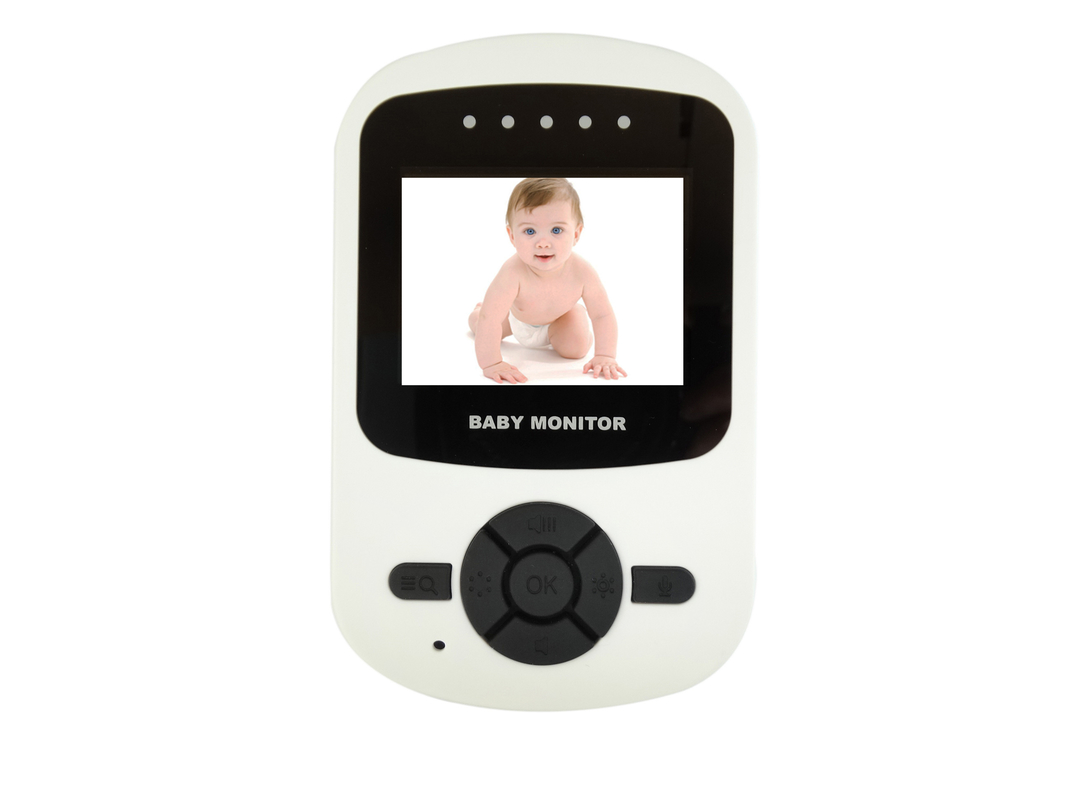

- Using high resolution 2.4-inch displayer.
- Supports one main device operate with multi sub-devices, one receiver can be connected to 4 transmitters.
- Using 2.4GHz as transmission frequency, comply with the standards pursuant to FCC, CE.
- Supports long distance transmission: Max to 200m-300m in empty area.
- Includes “Pairing” function, can pairing devices by pressing the “pairing” button on the LCD receiver end and the camera end.
- Including VOX(voice control)auto wake-up function, if the volume from baby’s end reach to a certain level will trigger the LCD receiver( After the displayer goes black, it will automatically lights up when receiving sounds) to inform parents to check on the baby.
- The receiver operates with lithium battery which provide convenience for mobile using.
- Supports playing music for baby.
- High resolution night vision function: Can achieving 24 hours’ monitor.
- Using half-duplex communication: Ensue clear sound quality.
Function
