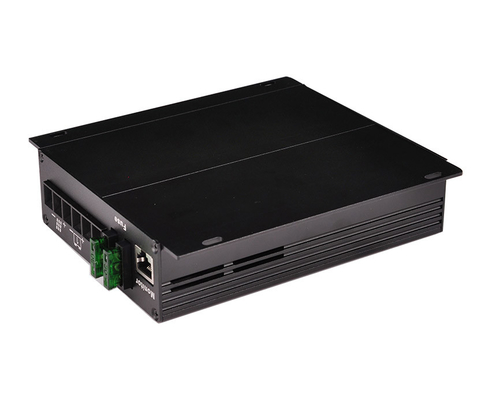

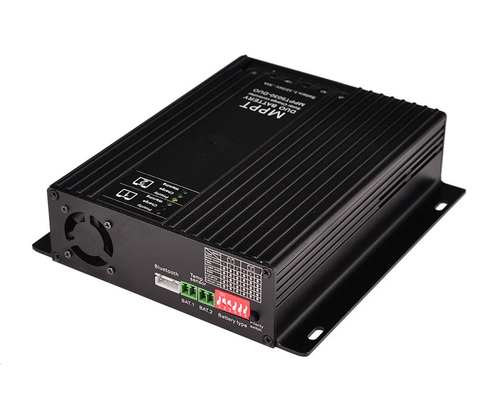

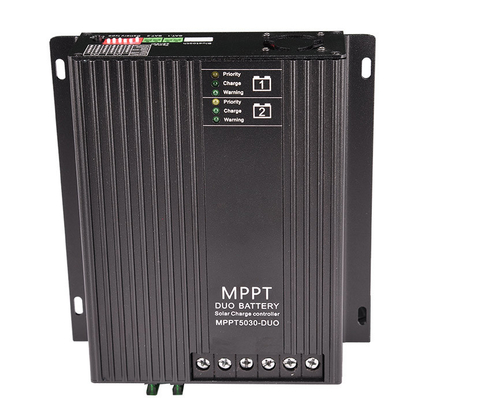

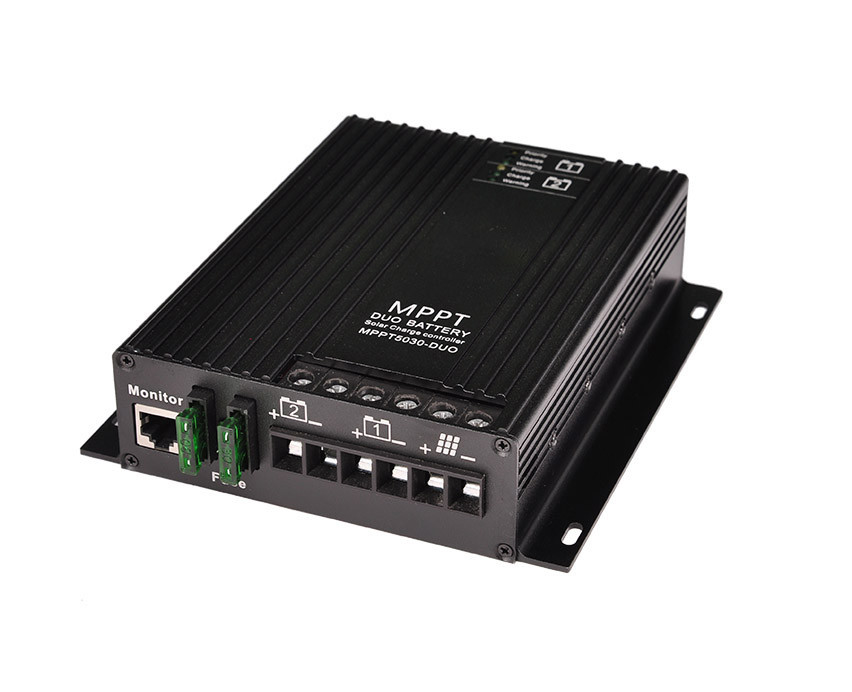

12V 24V 30A Dual Battery MPPT Solar Charge Controller For RVs Caravan Boat
Product Details:
| Place of Origin: | Shenzhen |
| Brand Name: | Oxiang /OEM |
| Certification: | CE.RoHS,FCC |
| Model Number: | MPPT5030-DUO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box Size：21*18*6.5cm |
| Delivery Time: | Sample: Around 3 working days after payment |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal, Credit Card |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| IP Level: | IP20 | Working Temperature Range: | -20℃+50℃ |
|---|---|---|---|
| Self-consumption Current: | 16mA-18mA | Battery Voltage Range: | 9V-32V |
| Rated Charging Current: | 30A | System Voltage: | 12V/ 24V Auto Recognition |
| Highlight: | RVs MPPT Solar Charge Controller,Dual Battery MPPT Solar Charge Controller,Caravan MPPT Dual Battery Charge Controller |
||
Product Description
12V/24V 30A Dual Battery MPPT Solar Charge Controller For RVs Caravan Boat
Parameters
|
Battery type |
GEL | Lead- acid | AGM |
|
Battery over-voltage protection |
15.5V | ||
| Battery overvoltage recovery voltage | 13.7V | ||
| Direct float charge voltage (no constant voltage charge) | 12.6V | ||
| Automatically change to priority battery | 12.0V | ||
|
Boost charging recovery voltage |
13.2V | ||
| Constant voltage charging time | 2h | ||
|
Battery voltage range |
9V-32V |
|
PV max. open circuit voltage |
50V(25℃) |
|
Self-consumption current |
16mA-18mA |
| Grounding type | If the system needs to be grounded, only the negative pole of the battery can be grounded |
| Temperature compensation | -3mv/℃/2V |
| Working temperature range | -20℃+50℃ |
| IP level | IP20 |
| Dimension | 155×147×43mm |
|
Weight |
0.78kg |
Features
1: MPPT charging controller
2: Suitable for charging two sets of batteries
3: MPPT tracking efficiency 99.8%
4: Maximum solar panel voltage 50V
5.Maximum input and output current 30A
6.Charge Battery type:Lead-acid,GEL,Sealed,Flooded,LiFePO4,Lithium-ion

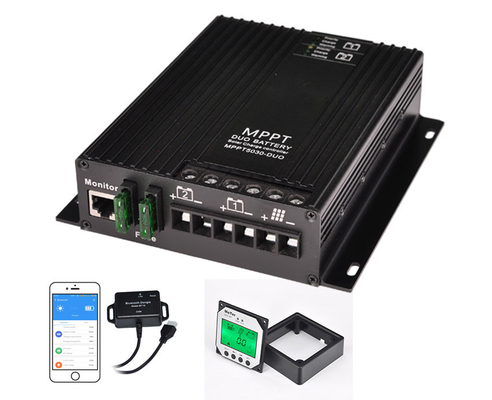

Choose Accessories: Monitor(MT-4); Bluetooth Dongle(BT10); Temperature Sensor(TRS)
Product size:14.7*16.2*4.2cm
Box Size:21*18*6.5cm
Weight : 0.9KG/Box
1 Carton :14pcs/14kg
Carton Size:44*41*23.5cm
Function
