DC Solar Battery Dual Input Solar Charge Controller Bluetooth Free APP B2B Operation
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE,ROHS,FCC |
| Model Number: | BS123020 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box Size：27.6*22.6*10.2cm Weight : 1.4KG/Box |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Main Battery: | 12V | Main Battery Type: | GEL, Sealed, Flooded, LiFePO4, Lithium-ion |
|---|---|---|---|
| DC-DC Max. Charging Current: | 30A | Solar Max. Charging Current: | 20A |
| Highlight: | ROHS Dual Input Solar Charge Controller,12V Dual Input Solar Charge Controller,B2B Operation Dual Input Charge Controller |
||
Product Description

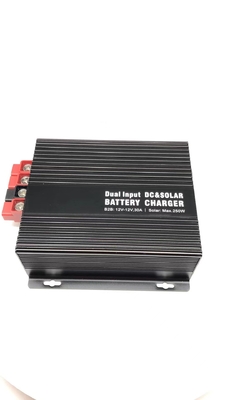

Dual Input DC & Solar Battery Charger Support Bluetooth Free APP Smart Vehicle Charger Controller
Specification
|
cable cross section |
cable length “+ Start II” |
cable length with insulated construction “– Batt.” |
“Fuse II” cable protection |
cable length “– Com.” to “– Board I” |
cable length “+ Board I” |
“Fuse I” cable protection |
cable lengths - and + “solar panels” |
| 2.5mm2 | _ | _ | _ | _ | _ | up to 4.5m | |
| 4mm2 | _ | _ | _ | 0.5-1.5m | 0.5-1.5m | 40A | up to 7m |
| 6mm 2 | up to 5m | up to 5m | 50A | 1.0-2.5m | 1.0-2.5m | 40A | up to 10m |
| 10mm 2 | up to 8m | up to 8m | 50A | 2.0-4.0m | 2.0-4.0m | 40A | up to 16m |
Features:
This is a all-automatic charger with 2 charging sources, you can use the battery (12V) to charge the battery (12V) (B2B), or you can use the solar panel to charge the battery, which can automaticall Intelligent switching charging method, specially designed for RVs, exposed cars, campers, ships, etc.
BS123020: B2B: 12V-12V/30A, MPPT solar charger: 12V/20A,250W
B2B Operation :mobile operation from dynamo and starter battery (Battery to Battery):
it refers to charging the main battery through dynamo and starter battery, .If it is not used in the Vehicle , you can also use one battery (12V) to charge another
Solar Operation
1. . The controller can improve the charging efficiency of the solar panel by 10-30% through MPP technology ( automatically calculating the maximum power yield), effectively shortening the charging time
2. The controller can charge the main battery according to the specified current by boosting or stepping down to ensure that the main battery is charged according to the standard charging curve
3. Auxiliary charging for support charging and trickle charging of the vehicle's starter battery in case of extended standstill periods.
