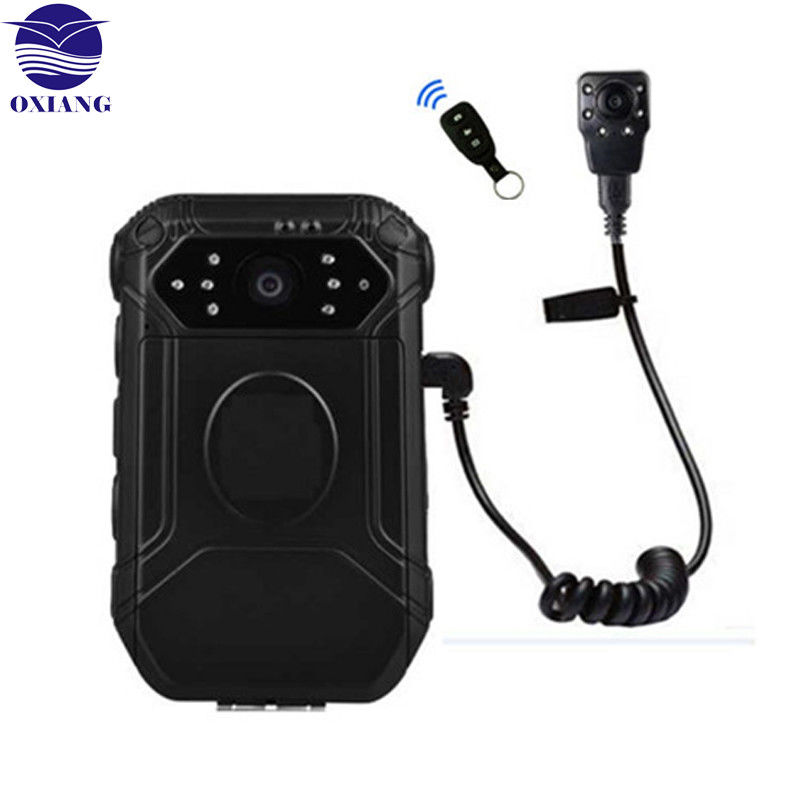

HD CMOS Wi-Fi Live Streaming Police Body Worn Camera With GPS Night Vision WiFi AP Or STA Remote Control
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Ouxiang |
| Certification: | CE,ROHS,FCC |
| Model Number: | OX-ZM605 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | USD79/pcs for sample; USD69/pcs for 100pcs |
| Packaging Details: | Neutral Packing |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram,Paypal |
|
Detail Information |
|||
| Type: | Body Worn Camera 1080P | Screen: | 2 Inch HD Screen |
|---|---|---|---|
| Wide Angle: | 140 Degree | GPS: | Optional |
| WiFi: | AP Hotspot Wifi For Live Video Streaming | Night Vision: | 10-15meters |
| Resolution: | 2K, Full HD 1080P, 720P | Picture Resolution: | 34MP |
| Battery: | Replaceable 3600mAh | Motion Detection: | 2 Meters |
| Shock Proof: | 2meters | Waterproof: | IP66 |
| Storage: | Support 16G/32G/64G/128G | Feature2: | Password Protect Video, Audio, Picture Recordings |
| Feature3: | Support External Mini HD Camera | Feature4: | Support Remote Controller |
| Highlight: | police dvr recorder,body worn video recorder |
||
Product Description
| Model | OX-ZM605 |
| GPS(optional) | Support and optional(Display latitude and longitude information) |
| WIFI(optional) | Support WIFI (15meters live video streaming) |
| Mini Camera | External HD mini button camera (optional) |
| Remote control | 3-5M to take photo/record video or stop (optional) |
| language | Support Chinese, English , |
| Sensor | 5MP CMOS,1/2.8" Color CMOS |
| LCD Screen | 2 inch 16:9 TFT-LCD High-Resolution Color Display |
| Recording Angle | Wide Angle 140 degrees |
| Waterproof | IP66 |
| Falling from height | Resistance to fall from a height of not less than 2M |
| Battey Capacity | Replaceable large capacity 3600Mah lithium battery |
| Battery Life | Continuous recording time NO LESS THAN: 16 hours (battery full charged, IR closed, Video resolution 848x480P 30fps) 13 hours (battery full charged, IR closed, Video resolution 1280x720P 30fps) 10 hours(battery full charged, IR closed, Video resolution 1920x1080P 30fps) |
| Standby time | More than 72 hours |
| Storage Capacity | 16G/32G/64G |
|
Recording Time for 32 GB Storage |
Recording time until card get full NO LESS THAN: 5 hours 40 minutes (resolution 1920x1080P 30fps) 8 hours 30 minutes (resolution 1280x720P 30fps) 13hours 40 minutes (resolution 848x480P 30fps) |
| Zoom | Auto digital zoom, manual zoom 2~64 times |
| Video input | maximum support 2304*1296P |
| Video output | AV jack:compatible with NTSC/PAL |
| Video Transfer | USB 2.0 |
| Video format | MP4 or MOV standard h. 264 video compression format |
| 10/20/30min(optional) or 10/20/25min(optional) | |
| Video Resolution | 2304x1296 2K/30p, 2560*1080/30p,1920X1080/30P,1440*1080 /30p,1280*720/60P/30P 848*480/30P (default 1920*1080 30P) |
| Motion Detector | The ability to adjust the recording if the motion(at a distance of no more than 2M)(default: OFF) |
| Photo Format | JPEG,34M 23M,18M,13M,9M,6M,4M(default 4M:2688*1512) |
| Burst Photo | 3/5/10/20 Shot burst picture taking |
| Snap Shot | Capture Photos During Video Recording(default 1920*1080 30p) |
| Shutter time | 1/2---1/2000 seconds |
| Audio | Support synchronous audio video, also can choose separately |
| Audio Microphone | High Quality Build-in Microphone. |
| Audio Format | MP3 |
| Night Vision | Up to 15 Meters with Visible face image |
| IR Light | 8 IR Light |
| white balance | Automatic white balance correction |
| PTT | Can Connect to Different Types of Radios |
|
High-definition multimedia interface (HDMI) |
Hd HDMI1.3 interface, the maximum support 1080 p output mode Television output signals: NTSC/PAL;(optional) |
| Back clip | High Quality Metal Clip with 360 degrees Rotation |
| Water Mark | User ID, Time and date Stamp,GPS coordinates Imbedded into Video |
| Video tags |
In the process of recording, press the video mark key video call video automatically convert hd video and marked; The importance of the difference between video |
| One kye record | Long press video boot, law enforcement apparatus can direct access to video mode. (optional) Long press audio boot, Law enforcement apparatus can direct access to recording mode. (optional) |
| Pre-record | Max 25 seconds(default: Off) |
| Post-record | 5 seconds/30 second/1 minutes/ 5 minutes(default: Off) |
| Unique ID number/unit | Include 5 digit device ID and 6 digit police ID |
| Password protect |
To set an administrator password to allow deletion via software. User can only view the videos but cannot delete it. |
| Auto power off | 5 minutes,3minutes ,1minutes (default: 5minutes) |
| Size/weight | 100mm*60mm*28mm/168g |
| Working Temperature | -30～70 degrees Celsius |
| Storage temperature | -40～80 degrees Celsius |
| Working current | Power on about 220mA, video about 160mA on off screen , IR on 350mA |
|
Background management software |
support background encryption, host computer software management； To set an administrator password to allow deletion via software. User can only view the videos but cannot delete it. |
| Standard Accessories | USB cable,USB Charger, Universal metal clip,Driver CD, Instruction Manual. |
|
Compatible with the operating system |
Winodws XP/ Win7/ Win8/Win10 |
This product adopts high-speed processor and embedded real-time operating system, and integrates high-definition video, audio, 4G wireless communication module, GPS, storage, wifi module,It can be widely used in law enforcement departments such as the public, inspection, law, armed police, industry and commerce, taxation and so on. Law-executor use real-time recording of the scene, the device collected evidence in the field of law enforcement, standardize law enforcement activities, and can be used for real-time video and audio information transmission, voice intercom, PTT cluster intercom functions through the 3G/4G wireless network monitoring system; Powerful CMS platform can be used for real-time command and scheduling of equipment.
Application industry:
Traffic police, patrol police, urban management, coastal defense, armed police, insurance, fire fighting, electric power, medical treatment, emergency rescue and other fields.
1. In the case of non-artificial damage, all products purchased in our company are guaranteed to keep one year
warranty and we have proceeded aging test before.
2. If quality problems happen in guarantee period, our company will maintain for free.
3. Additionally, our company provides technical support for life.
4. If you are caught in some problems when using our products, welcome to contact your relevant salesman at any time, we promise to make positive response within 12 hours.
5. After expiry of a guarantee period, we provide to repair for life, and our clients just need to pay parts original cost.
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer who has been specializing in producing WIFI hidden cameras for 10 years.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one set, or you just need one set,
we would be very likely to make the MOQ as 1 set for you.
3. Q: When will you make the delivery?
A: Sample: 1-3 working days;
Bulk order: According to the quantities. If the number of products are 500-1000pcs, it will need about one week to deliver. If the number is over 1000pcs and you have an immediate demand please contact us, we are online from 8.30 am to 21.00 pm, your questions or inquiry shall be respond within 12 hours at most.
4. Q: What kinds of trade term payment methods available ?
A: EXW, CIF, FOB.etc. Usually we accept T/T, West Union, Paypal, Alibaba payment.
5. Q: May I get free sample?
A: Normally, we will charge the samples to start the business. However, the sample fee is refundable when you place bulk orders.
6. Q: Can you supply OEM or ODM service?
A: We can supply OEM/ODM service of any charger or power adapter absolutely!
7. Q: How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. if mockup is ok, finally we will go to mass production.
